lightweight eps cement panel interior and exterior wall panel

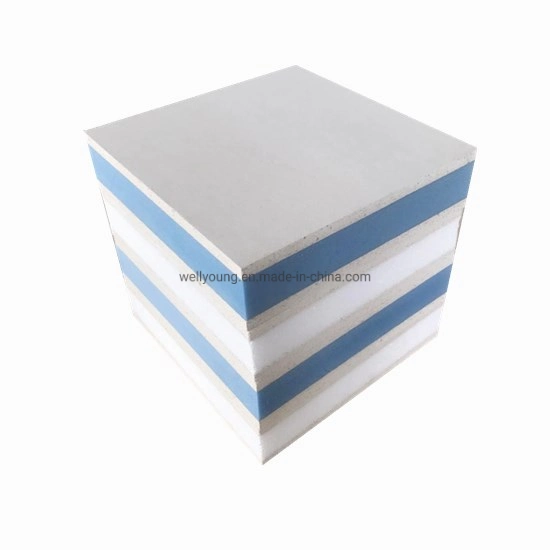

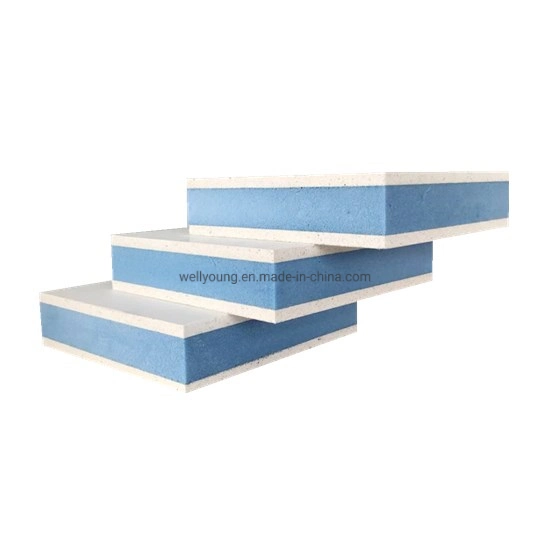

Structural Insulated Panels / Sandwich Panel / SIP Panel is a composite building material
It consists of a sandwich of two layers of structural board with an insulating foam in between
Panel skins options include
- magnesium oxide boards(MGO)
- Fiber cement board (FCB)
- Oriented strand board(OSB)
Insulation core options include
- Expanded Polystyrene(EPS)
- Extruded Polystyrene(XPS)
- Poly Urethane (PU)
Specifications
Material | outer layer:Mgo board |
| inner layer: EPS foam |
Specification | The size and thickness could be made according to customized. |
Feature | Sound insulation and keep warm |
| Fireproof: A grade non-combustible mgo board and flame retardant-grade EPS and XPS |
| Green and environment protection |
| Easy to construct, save the cost of installation. |
Specification
Common size: 900*2100, 600*2100
1) Largest width: 1200mm, adviced 1100mm
2) Length: 2400mm, 2700mm, 3000mm, 3600mm, option is available
3)Thickness:mgo board can be 3-20mm, EPS core can be 20-200mm
4) EPS Density: 15-25KG/M3
Customized size can be accepted.
Characteristics
a. A finished product, can be used directly, no need to compound.
b. Lower the cost and time of construction.
c. Superior fireproof wallboard.
d. Good performance of sound insulation and keep warm.
e. Green and environment protection.
f. Easy to construct and combine discretionarily.
Structure
Application
Simple mobile house, cold storage, warm-keeping houses, villa, prefabricated house and thermal insulation wallboard. It can also be used in flue pipe making.
